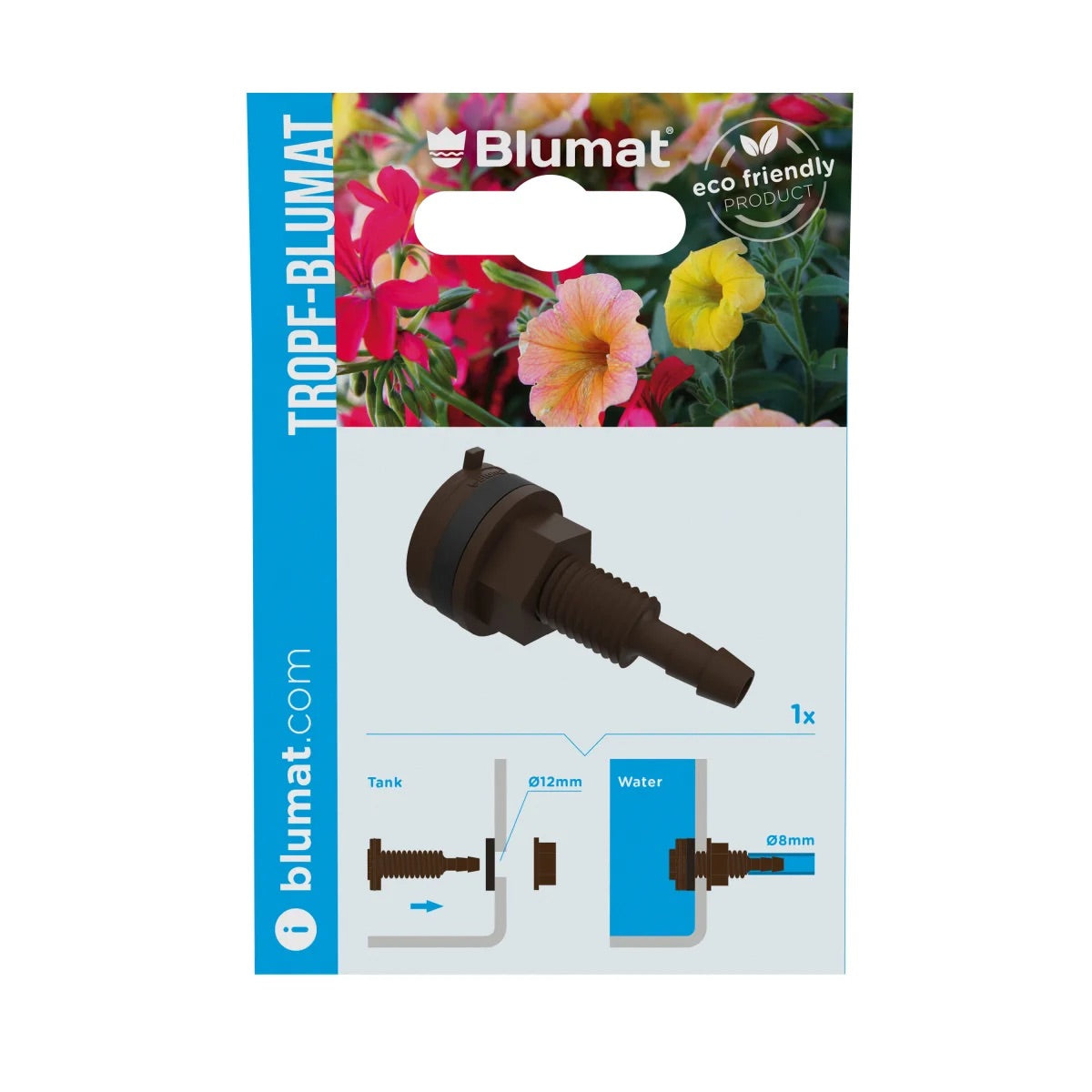

High tank connection

Scope of delivery: 1 piece tank connection consisting of container opening with 8 mm connection nozzle + sealing ring + fastening nut

Description
The tank connector serves as a direct connection to the water tank when routing the supply hose. It is securely mounted via a drilled hole, and the supply hose is then attached. The sealing ring, which is pressed against the inside of the tank by the mounting nut, ensures a tight seal. Dimensions: Diameter 24 x 51 mm, connection nozzle 1 x 7.5 mm, mounting nut hex SW 17, sealing ring diameter 23 x 4 mm, bore 12 mm, mounting hole on the tank diameter 12 mm, max. wall thickness for adequate fastening approx. 18 mm, material: polyamide + polypropylene plastics, EPDM seal
Connections: 30405 Supply hose 8 mm (and others)
